Testing your RUST api

Rust binding architecture

overview

afb-librust provides a TAP (Test Anything Protocol) framework. Testing API may run either automatically in batch mode or on demand in REST/WebSocket mode. Technically a RUST test module in only a specialized binding. This allow to leverage afb-binder capabilities and user may choose to run test directly from APIs afb-binder process or from an external process.

  • first model is very convenient when using a source debugger.
  • second model allows to run the test suite from a host when APIs remains on the target.

Tests are created with AfbTapTest::new method. Newly created test should then be added to a group (AUTORUN is default group). Custom user defined group:

  • should be added to test API.
  • group uid should be attach a test exit label onsuccess/onerror

Test may run on two modes:

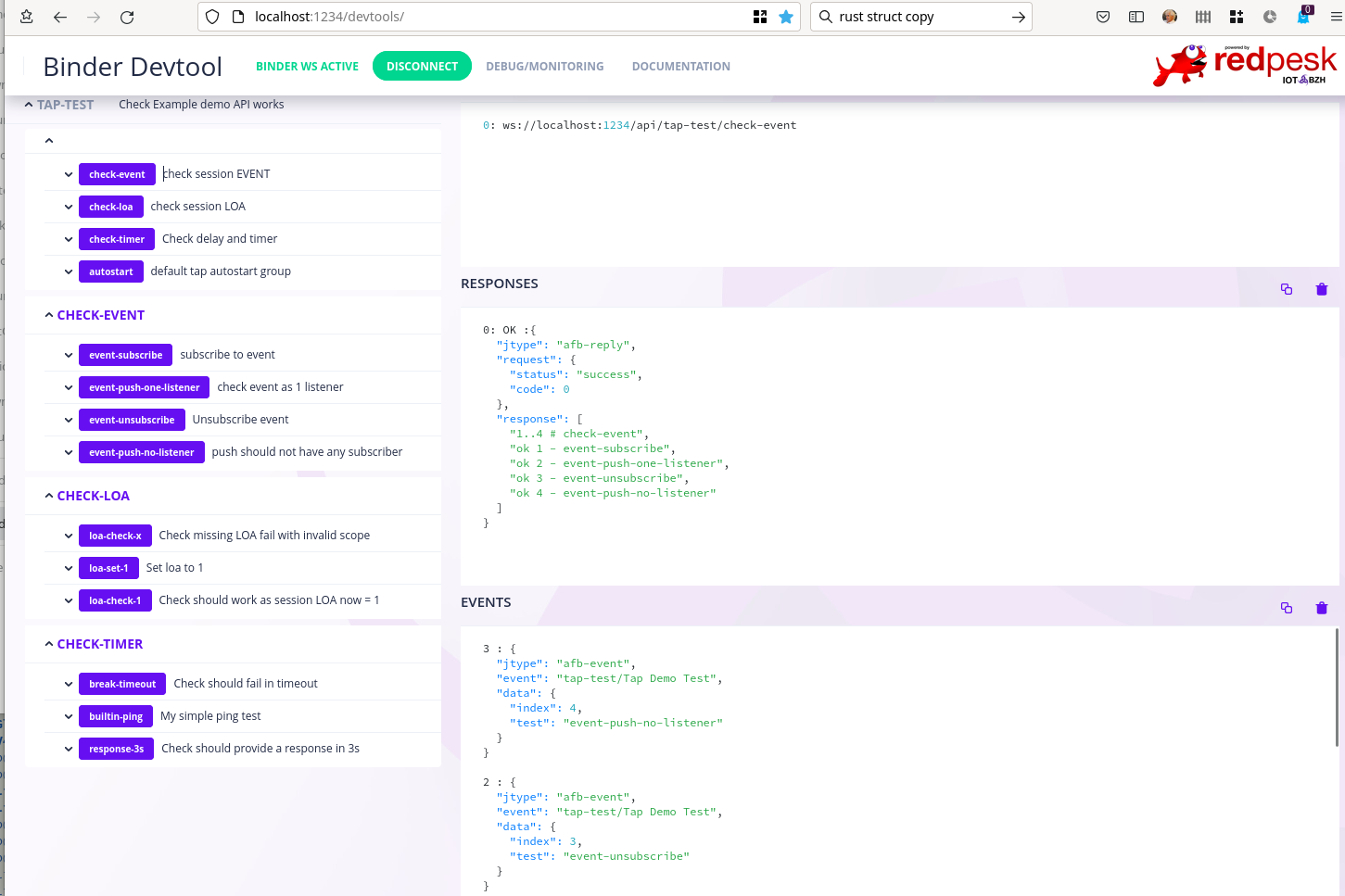

  • API on demand mode: user selects a specify test/group and launch it from devtool UI, afb-client, CURL, … TAP result are return JSON object.
  • AUTORUN automatic mode: in this case test start from 1st AUTORUN test and depending on onsuccess/onerror switch to a user defined group.

Example of CLI interaction

afb-client -H localhost:1234/api rust-api info

Example of batch autorun/autoexit mode

afb-binder --config=afb-tests/etc/binding-test-auto.json

1..5 # autostart
ok 1 - builtin-ping
ok 2 - jsonc-arg
ok 3 - jsonc-reply
ok 4 - jsonc-arg
ok 5 - MySimpleData

1..3 # check-loa
ok 1 - loa-check-x
ok 2 - loa-set-1
ok 3 - loa-check-1

1..4 # check-event
ok 1 - event-subscribe
ok 2 - event-push-one-listener
ok 3 - event-unsubscribe
ok 4 - event-push-no-listener

1..3 # check-timer
not ok 1 - break-timeout # status=0 info=Success
ok 2 - builtin-ping
ok 3 - response-3s

coding a test

A test is composed of

  • uid: this is a free text (spec reference, bug reference, …)
  • api/verb: point on the API to be tested. Note:
    • one test suite may test multiple APIs
    • api may either be local or remote
    • optional api input arguments
  • expected replies
    • status return (default 0)
    • optional data. Note than when expect json replies jsonc::contains is used in place of jsonc::equal
  • optional group labels
    • onsuccess switch to new group if test succeed
    • onerror same thing when test fails
  • optional timeout
    • default uses group timeout
    • group default uses suite default
    • builtin default is 5s
let testa= AfbTapTest::new("jsonc-arg", "rust-api", "verb_typed")
    .set_info("Check json typed input")
    .add_arg(&JsonStr("{'skipail':'Follijen','location':'PortLouis','lander':'Brittany'}")).expect("valid argument")
    .add_expect(&JsonStr("{'LANDER':'BRITTANY'}"))
    ;

let testb= AfbTapTest::new("MySimpleData", "rust-api", "verb_typed")
    .set_info("Check invalid typed input")
    .add_arg(MySimpleData{x:256,y:1024,name:"Skipail IoT.bzh".to_owned()}).expect("valid SimpleData")
    .set_onsuccess("check-loa")
    ;

adding test to group

When not push directly into AUTORUN group, test are added a user defined group. Note that when using API/Ondemand mode each group generate a verb that execute corresponding group, when each test within the group generate a verb prefixed with group/uid.

let loa_group= AfbTapGroup::new("check-loa")
    .set_info ("check session LOA")
    .add_test(loa1)
    .add_test(loa2)
    .add_test(loa3)
    ;

adding test and group to test suite

The test suite contains:

  • builtin AUTORUN group
  • optionally user defined groups
  • flags:
    • autorun: true/false launch or not autorun a afb-binder startup
    • autoexit: true/false exit afb-binder process at the end test
    • output: JSON/TAP defined default output format with using autorun mode. Api/Ondemand only support JSON(TAP).
  • finalize: start test suite processing.
impl AfbApiControls for TapUserData {

fn start(&mut self, api: &AfbApi) -> i32 {
  let test_suite= AfbTapSuite::new(api, "Tap Demo Test")
    .set_info("Check Example demo API works")
    .set_timeout(0)
    .add_test(test1)
    .add_test(test2)
    .add_group(event_group)
    .add_group(loa_group)
    .set_autorun(true)
    .set_autoexit(false)
    .set_output(AfbTapOutput::TAP)
    .finalize();
    let status= match test_suite {
        Err(error) => {
            afb_log_msg!(Critical, &api, "Tap test failed to start: error={}", error);
            AFB_ABORT
        },
        Ok(_json) => AFB_OK
    };
}
}

Adding your test suite within a binding

As RUST TAP suite is a binding, its requires as for any other binding an API to be created. Technically TAP test suite only start when API is created within API start method of AfbApiControls trait.

pub fn binding_test_init(rootv4: AfbApiV4, jconf: JsoncObj) -> i32 {
    let uid= match jconf.get::<String>("uid") {
        Ok(value) => value,
        Err(_error)=> "Tap-test-rootv4".to_owned(),
    };

    let tap_config= TapUserData {
        autostart: true,
        autoexit: true,
        output: AfbTapOutput::TAP,
    };

    // custom type should register once per binder
    demo_converter::register(rootv4).expect("failed to register custom type");

    afb_log_msg!(Notice, rootv4, "-- rootv4 {} loaded", uid);
    match AfbApi::new("tap-test")
        .set_info("Testing Tap reporting")
        .require_api("rust-api")
        .set_callback(Box::new(tap_config))
        .seal(false)
        .finalize()
    {

        Ok(api) => {
            afb_log_msg!(Notice, rootv4, "Tap test starting uid={}", api.get_uid());
            AFB_OK
        }
        Err(error) => {
            afb_log_msg!(Critical, rootv4, "Failed to register API: error={}", error);
            AFB_ABORT
        }
    }
}

// register rootv4 within libafb
AfbBindingRegister!(binding_test_init);

Test coverage

```bash

you need Rust grcov

cargo install grcov rustup component add llvm-tools-preview

CARGO_INCREMENTAL=0 RUSTFLAGS=’-Cinstrument-coverage’ LLVM_PROFILE_FILE=’cargo-test-%p-%m.profraw’ cargo test jsonc

generate HTML report

mkdir -p target/coverage/html grcov . –binary-path ./target/debug/deps/ -s . -t html –branch –ignore-not-existing –ignore ‘../’ –ignore “/” -o target/coverage/html firefox target/coverage/html/inde.html

generate LCOV report

mkdir -p target/coverage grcov . –binary-path ./target/debug/deps/ -s . -t lcov –branch –ignore-not-existing –ignore ‘../’ –ignore “/” -o target/coverage/lcov.info

clean up intermediary files

rm *.profraw
