WiFi access point binding

Architecture

The Wifi Access point binding is based on the legato.io Wifi API.

This binding uses hostapd for launching the WiFi access point and dnsmasq for managing the ip addresses (DHCP).

It exposes a standard set of REST/Websocket APIs, providing a simple yet powerful mechanism to configure and control a WiFi access point dynamically. It’s possible to manage network parameters such as:

  • Interface name
  • Domain name
  • Hostname
  • SSID and passphrase (or pre-shared key)
  • Country code
  • Security protocol
  • Access point IP address and DHCP range (start, stop, netmask)
  • WiFi discoverability
  • Maximum number of clients
  • IEEE standard mask
  • Channel number used by the access point

These parameters are configured via JSON files or runtime API commands.

  • Define a config.json with ‘script’ for access point parameters
  • User standard afb-devtools-ui or provide a custom HTML5 page.

The binding sends status and event updates asynchronously through websocket events (you can subscribe to these events to see the access point status, the client connection or disconnection…).

Documentation

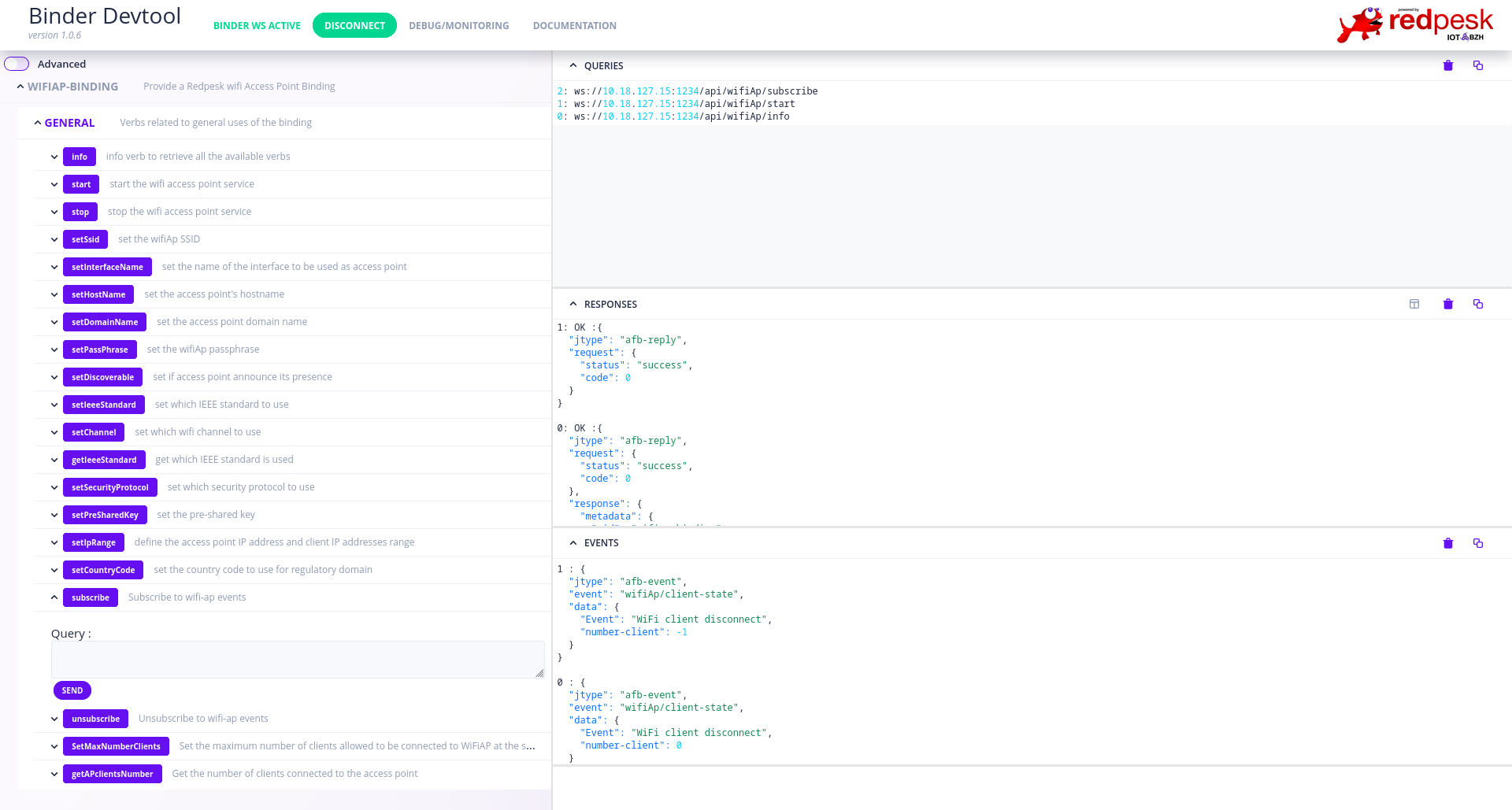

HTML5 test page

wifiap-binding-html5
