Deploying and running a redpesk image for the NXP S32G2 Vehicle Networking board

Based on quad Arm® Cortex®-A53 cores and triple, dual-core lockstep Arm Cortex-M7 cores, the S32G-VNP-RDB2 is used for a variety of typical automotive applications such as central gateway, secure key management… Depending on your needs, this is an interesting hardware for automotive purposes that’s why we support redpesk OS on this board.

Deploying a redpesk OS image on this kind of board consists of copying a disk image on an SDcard.

See the NXP specification for more details about S32G2 Processors designed for Vehicle Networking.

NOTE:
Only the S32G-VNP-RDB2 model is supported with the BSP yet.
NXP recommends using S32G-VNP-RDB3 for new designs, please contact us for latest information about this board.

Download images

See Download Images section.

Download our S32G2-VNP-RDB2 image from command line

Create a directory to download the image:

mkdir ~/redpeskimage
cd ~/redpeskimage

Then download the latest redpesk OS image with this command:

wget -r -nd -nc --no-parent --accept-regex='redpesk.*smack.*\.(bmap|xz|sha256)' --reject-regex '(image\.raw|ova|index)' 'https://download.redpesk.bzh/redpesk-lts/batz-2.0-update/images/smack/minimal/aarch64/s32g2/'

Control the image integrity

Before doing anything, please control the integrity of the downloaded redpesk image. Example:

sha256sum -c redpesk*.tar.xz.sha256

redpesk*aarch64*.tar.xz: OK

Copying the image on your SD card

Plug your SD card and find it (be sure it is unmounted)

Copy the correct device path using the command below. It should be a hotplug device.

lsblk -dli -o PATH,VENDOR,TYPE,HOTPLUG,MODEL
DEVICE_TO_COPY='/dev/<hotplug_device>' #in the example it is /dev/sdc

Example:

$ lsblk -dli -o PATH,VENDOR,TYPE,HOTPLUG,MODEL
PATH         VENDOR   TYPE HOTPLUG MODEL
/dev/sda     ATA      disk       0 WDC_WD10SPZX-08Z10
/dev/sdc     TS-RDF5  disk       1 SD_Transcend #MYSDCARD
/dev/nvme0n1          disk       0 LITEON T11 512
DEVICE_TO_COPY=/dev/sdc

Or if only one device is hotpluggable on your computer:

# need jq
DEVICE_TO_COPY=$(lsblk -dlJ -o PATH,VENDOR,TYPE,HOTPLUG,MODEL | jq -r '.blockdevices[] | select(.hotplug == true).path')
echo $DEVICE_TO_COPY

Umount if needed

lsblk $DEVICE_TO_COPY
# need to umount each partition
sudo umount <part*>

Example:

$ lsblk /dev/sdc
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
sdc      8:32   1 14.6G  0 disk
├─sdc1   8:33   1  501M  0 part /run/media/iotbzh/0409-3A02
├─sdc2   8:34   1    1G  0 part /run/media/iotbzh/cd3c87ec-1011-4832-aef3-6be0ed3d3748
└─sdc3   8:35   1  2.5G  0 part /run/media/iotbzh/4e508264-8ce2-447f-a829-e4c31ea20047
$ sudo umount /run/media/iotbzh/*

Flash SD card

Prerequisites: device is plugged in, found, unmounted

• Extract the image first

  tar xJf redpesk*.tar.xz


• Flash it using dd

  sudo dd if="Redpesk-OS.img" of=$DEVICE_TO_COPY bs=4M status=progress


• Or using bmaptool

  bmaptool copy "Redpesk-OS.img" $DEVICE_TO_COPY


TIPS: Once you are used to flash your image, you could do it much faster in one single command using bmaptool like this:

bmaptool copy "https://download.redpesk.bzh/redpesk-lts/batz-2.0-update/images/smack/minimal/aarch64/s32g2/image.raw.tar.xz" $DEVICE_TO_COPY

This will download, control integrity and flash the latest redpesk OS image on your device.

Hardware DIP switch configuration

Integrated into the PCB, a DIP switch is generally present to allow you to choose between different boot mode.

For the NXP S32G2 Vehicle Networking, here is the following configuration:

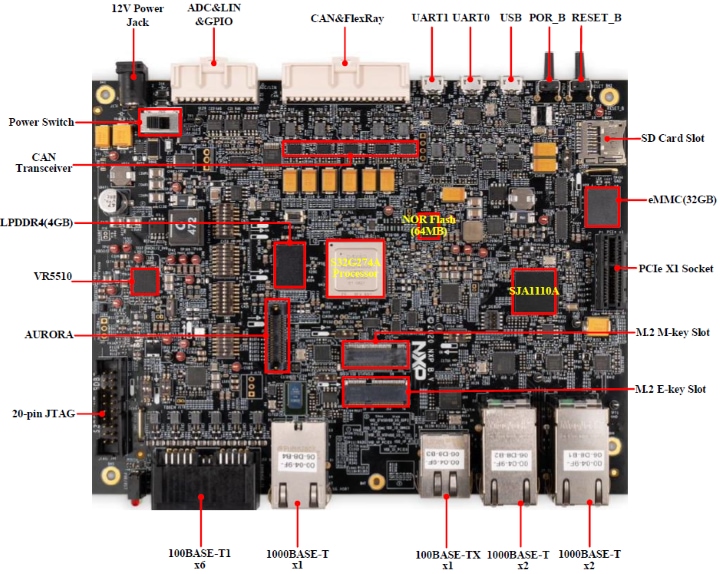

For more hardware information (like connections, button functions or led status), please refer to the NXP documentation.

Connect to the S32G2-VNP-RDB2 board

• Plug in the SD card into the board.
• Connect the USB-UART cable directly to the USB port called UART0.

• By default, the board is configured to boot to the eMMC. You might need to change DIP switches for a SD card boot.

• Power on the board (NXP’s 12V power cable).

  use dmesg to see the name of the USB plugged

  [    7.567111] usb 1-2.1.2: pl2303 converter now attached to ttyUSB1


• Use picocom (or minicom depending on your tools!).

   sudo picocom -b 115200 /dev/ttyUSB1


NOTE: Default root password is root.

• Getting the address of the board to be able to use a SSH connection

  Connect an Ethernet cable between computer and the board (like on the eth0 interface).

   #on board
   ip -c a


   # on computer
   ssh root@<ip_board>


Installing a package

Your board is now ready to boot redpesk OS. You can install any packages and/or your own packages.

Please refer to section Application deployment for more details.
